Jira Agile Board Tutorial
In this tutorial, we'll explain how to work with boards in Jira Software.
10 minute read. Complete over 2 weeks or more
You are new to Jira Software. You've created a project (which might even have its own board) and want to learn about creating a board from scratch
You've created a Jira Software account
You've created a Jira Software project

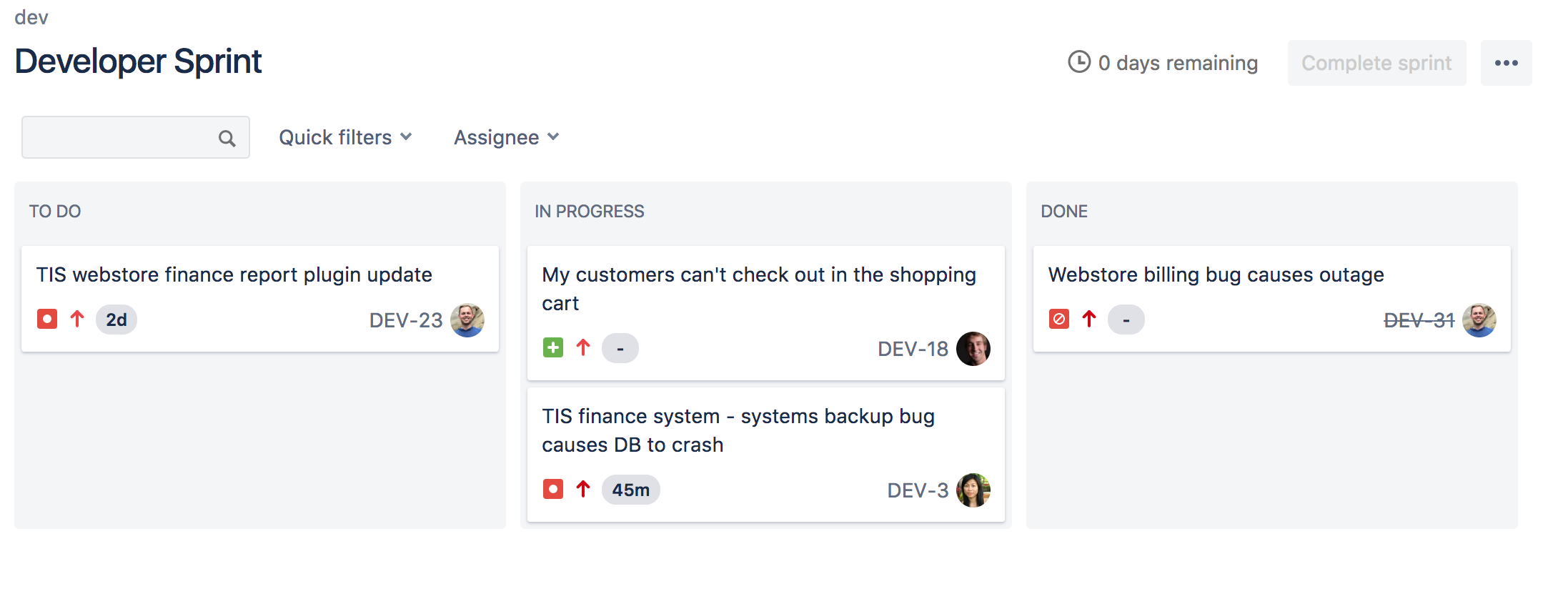

A board displays issues from one or more projects in columns that represent the team's process. They provide the team with a shared view of all work that hasn't started, work that is in progress, and work that is completed.
Step 1: Create a board
To create a new board:
Click Search () > View all boards.
Click Create board.
Select a board type (either agility, Scrum, or Kanban).
Select how you want your board created - You can either create a new project for your new board, or add your board to one or more existing projects.
The three board types are:
|Scrum boards|| |
|Kanban boards|| |
|Agility boards|| |
If your team has a strong understanding of agile, we recommend picking Scrum or Kanban (whichever suits your team's process). If your team is new to agile, or you want to jump in without spending much time on configuration, we recommend picking the agility board.
Step 2: Set up your board
We recommend configuring columns and quick filters first. Configuring columns is useful, because you can make your board reflect your team's process. For Scrum/Kanban boards, we also recommend setting up Quick Filters, so that team members can focus on the issues they need to, quickly. For example, you might configure Quick Filters that only show issues for specific releases.
- Go to your board by clicking Search () > View all boards, and selecting your board.
- Click more () > Board settings.
Agility boards are still in development, so you can't configure much. The stuff you can customize - like columns, column limits, and development tool integration - is all done on the board itself. Agility boards are only in Jira Software Cloud.

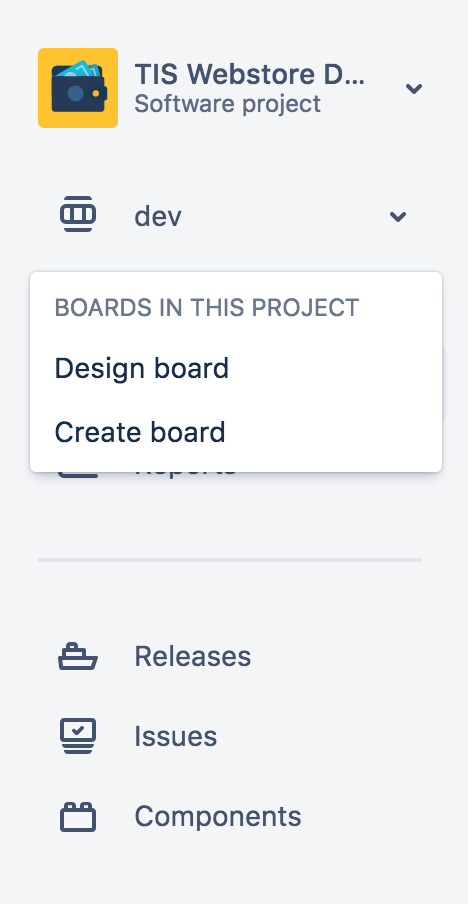

Step 3: Navigate between boards
To navigate from one board to another, use the board switcher located in the left-hand menu under the project name.
