To demonstrate how to develop, deploy, and manage applications using Jira Software and various connected tools, our team created ImageLabeller, a simple demo application built on AWS that uses machine learning to apply labels to images.

This page covers how to setup an AWS SageMaker predefined model, a prerequisite for ImageLabeller to successfully process images. Before you begin, we recommend reading the ImageLabeller architecture for context.

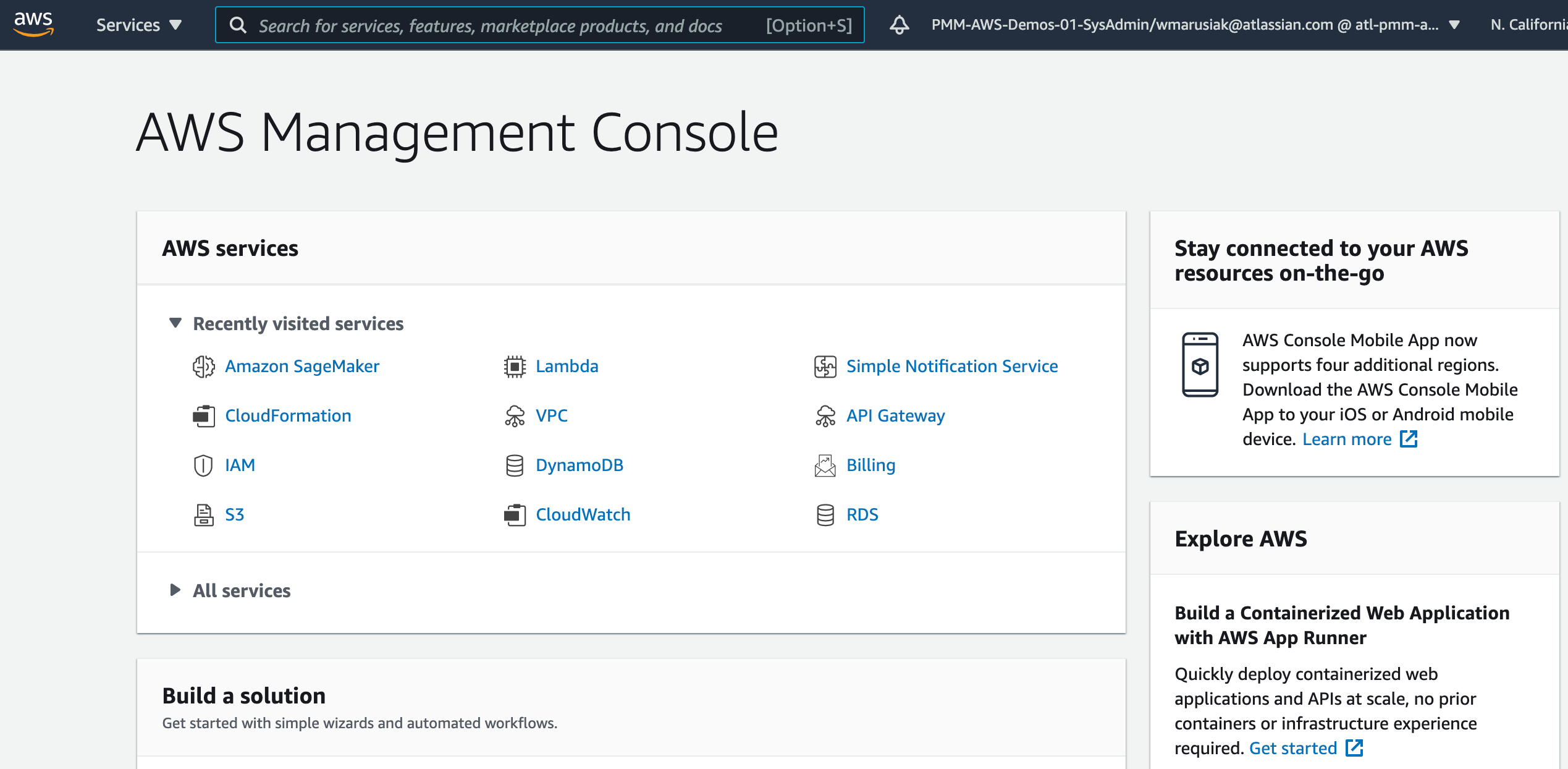

Log in to AWS Console and navigate to Amazon SageMaker.

Screenshot of AWS console

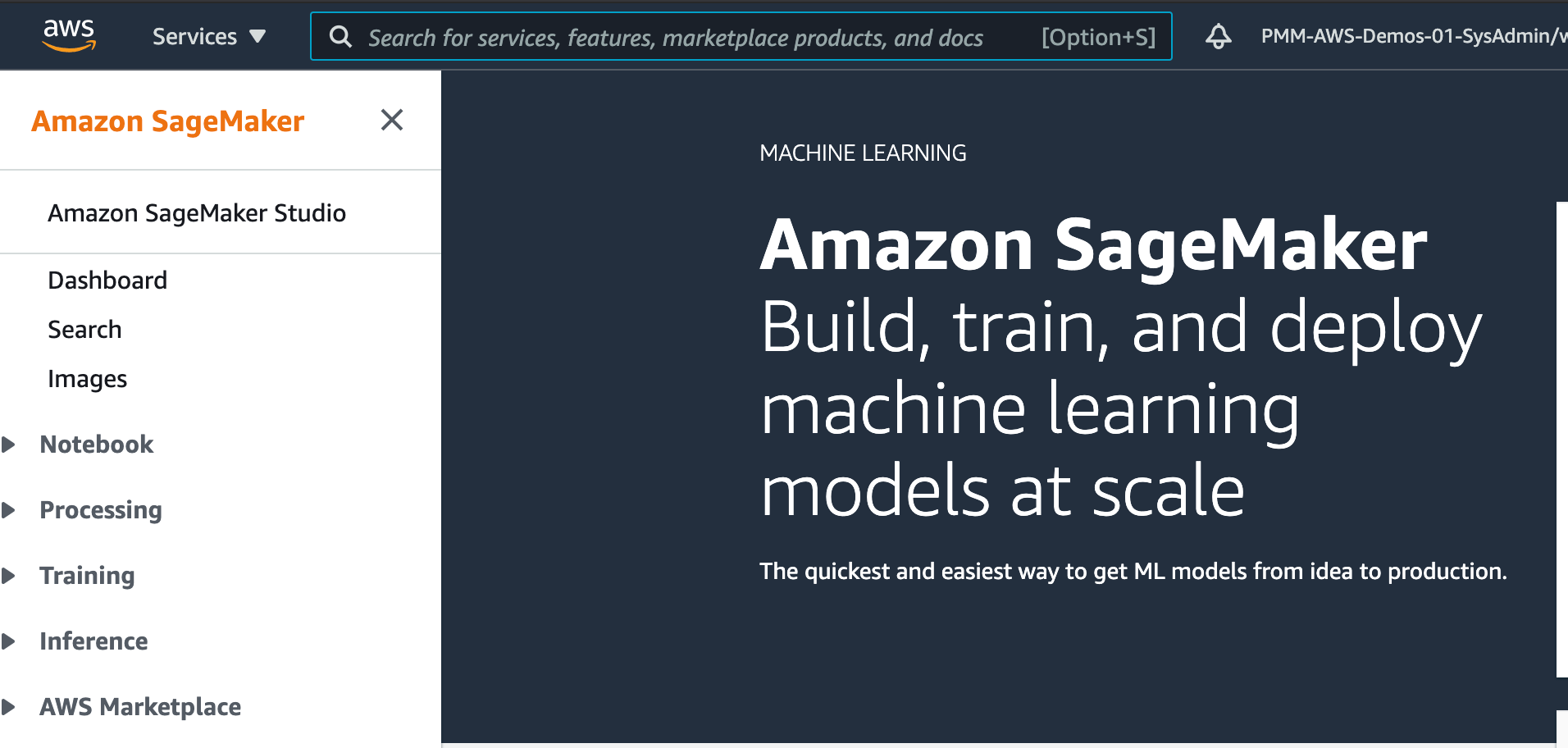

Go to Amazon SageMaker Studio.

Screenshot of Amazon SageMaker Studio

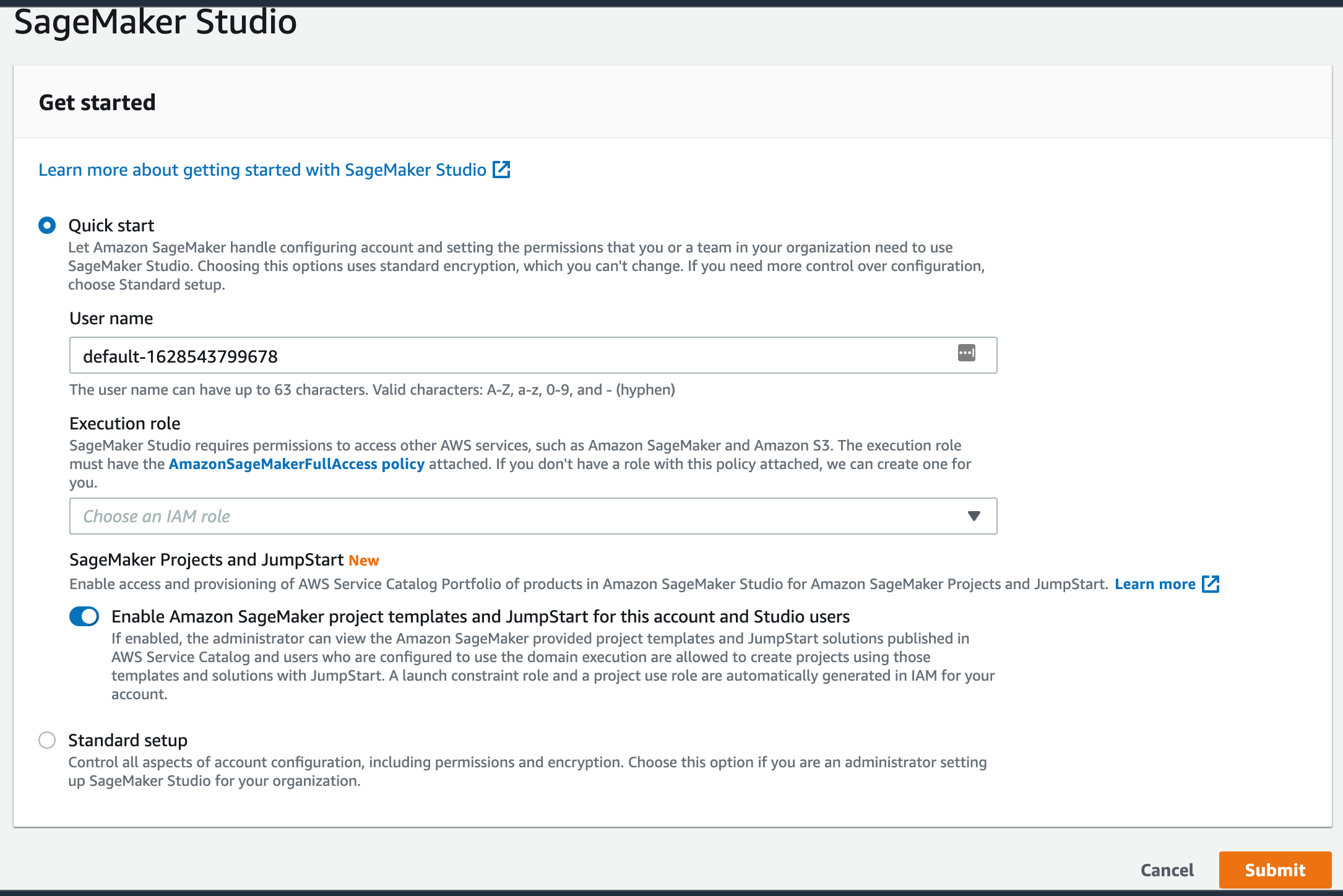

Choose Quick start > Execution role > Create an IAM role.

Screenshot of Quick start

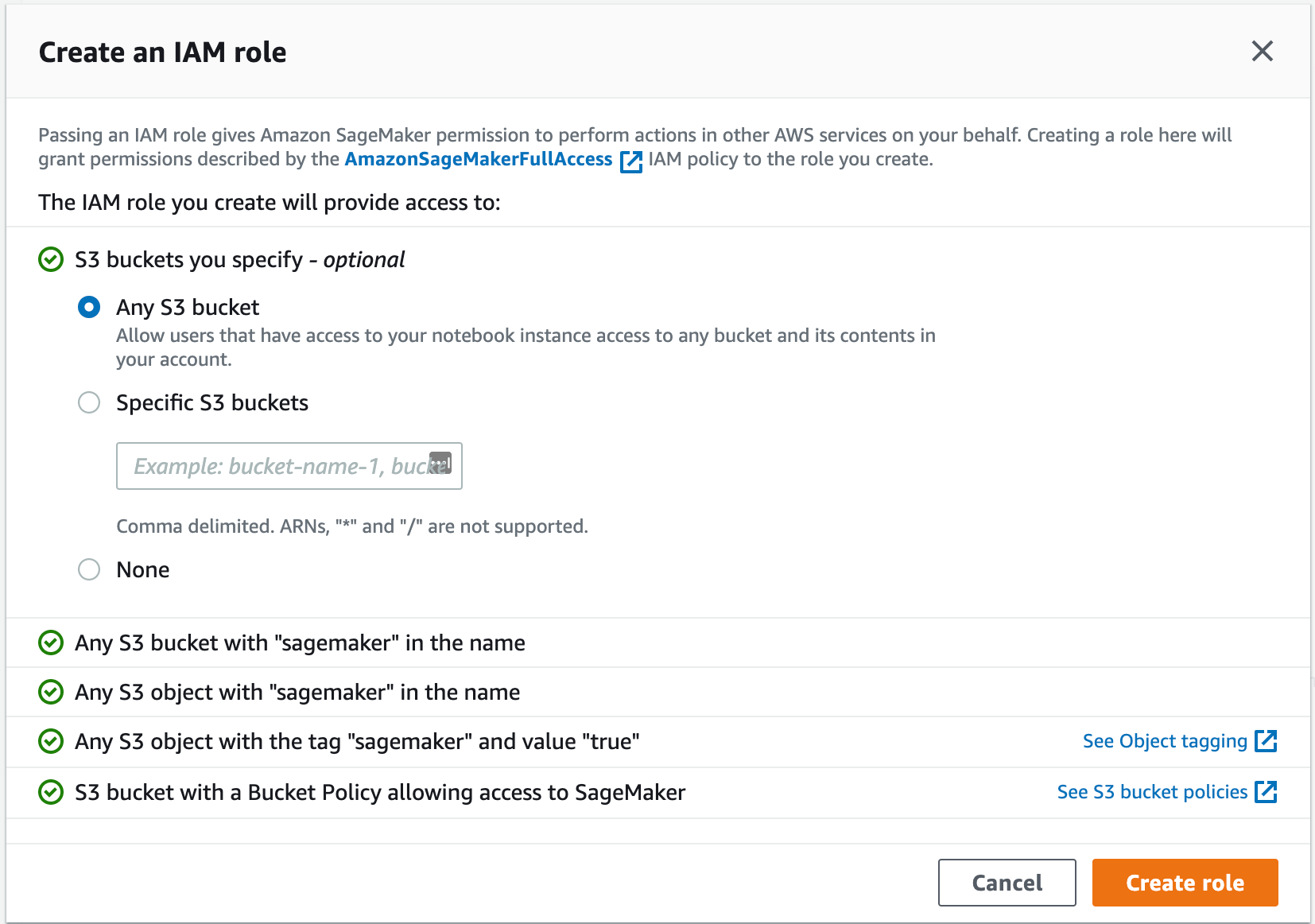

Click Create role. Then click Submit.

Screenshot of Create an IAM role

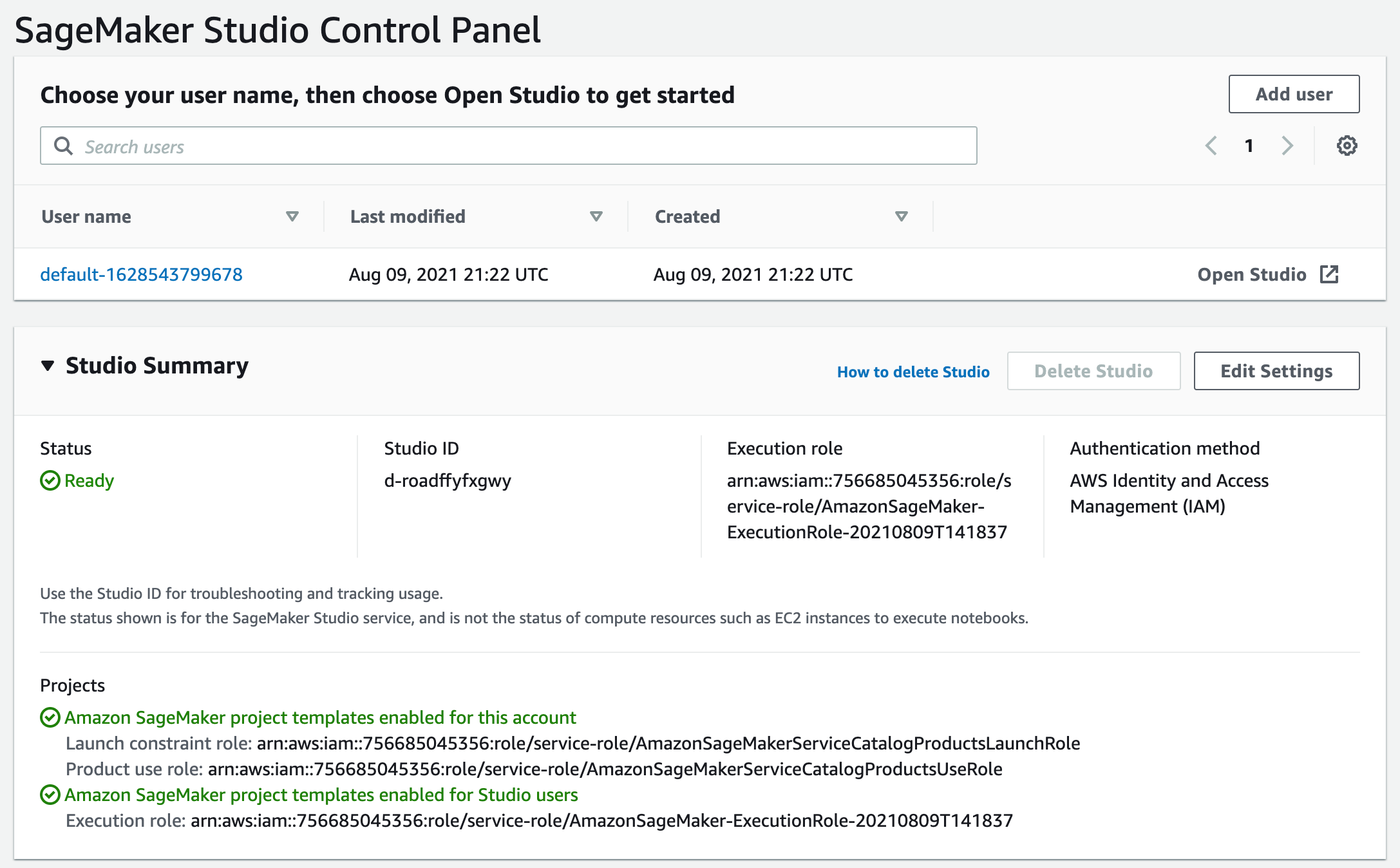

SageMaker will take a while to setup. Once it’s ready, click Open Studio.

Screenshot of post-setup

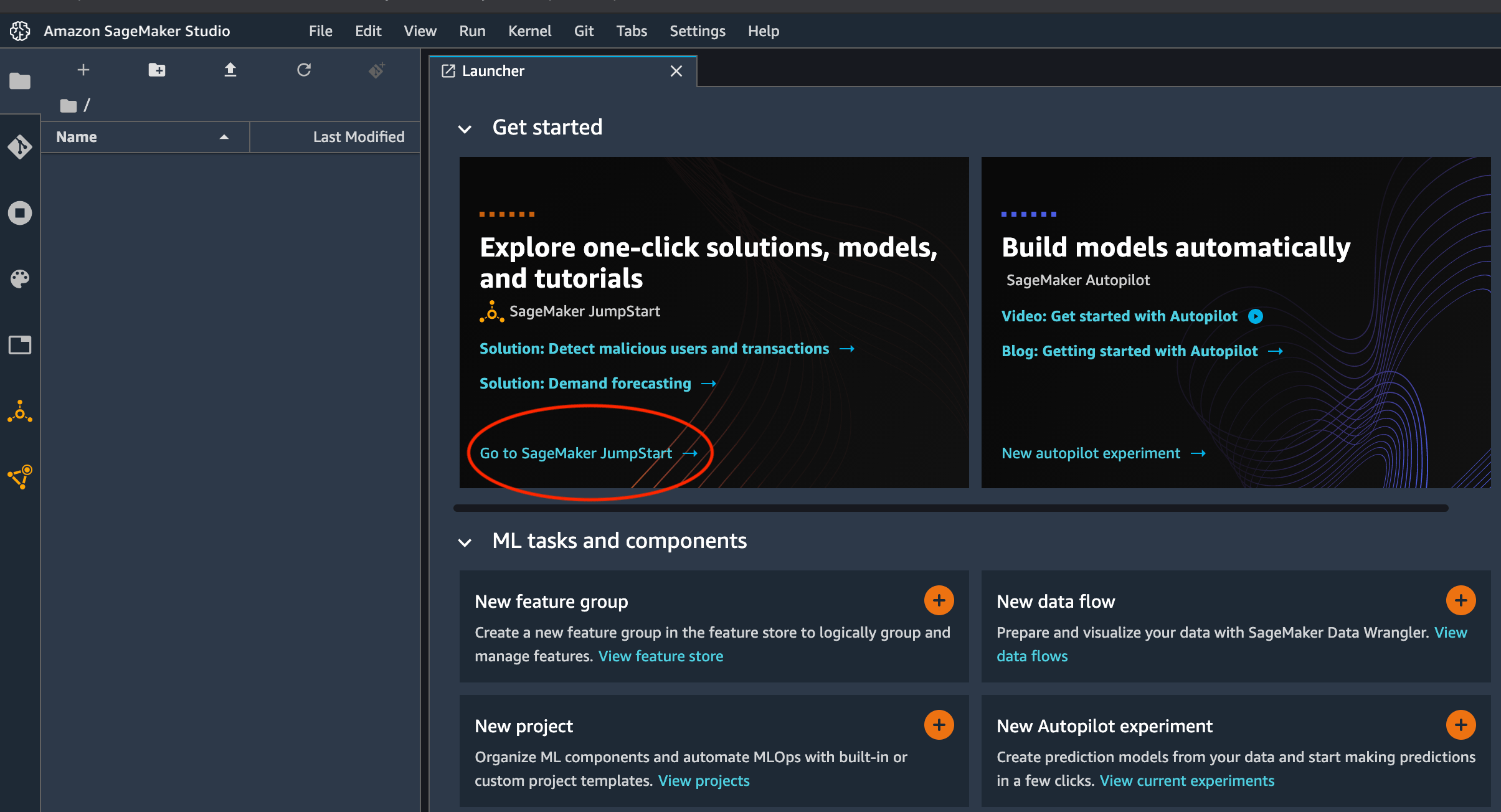

Click Go to SageMake JumpStart.

Screenshot of SageMaker JumpStart

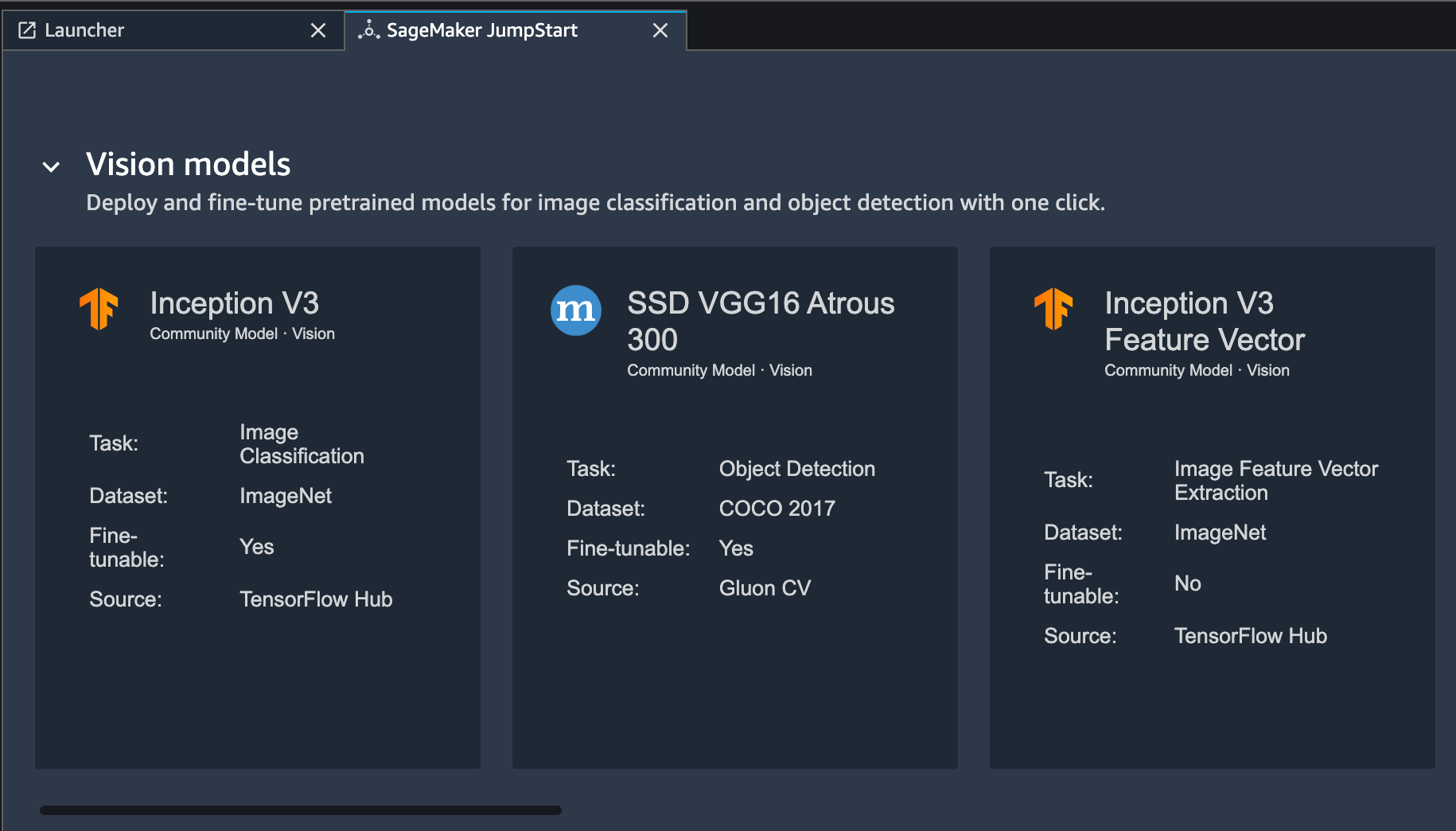

Locate, and click on Inception V3.

Screenshot of vision models

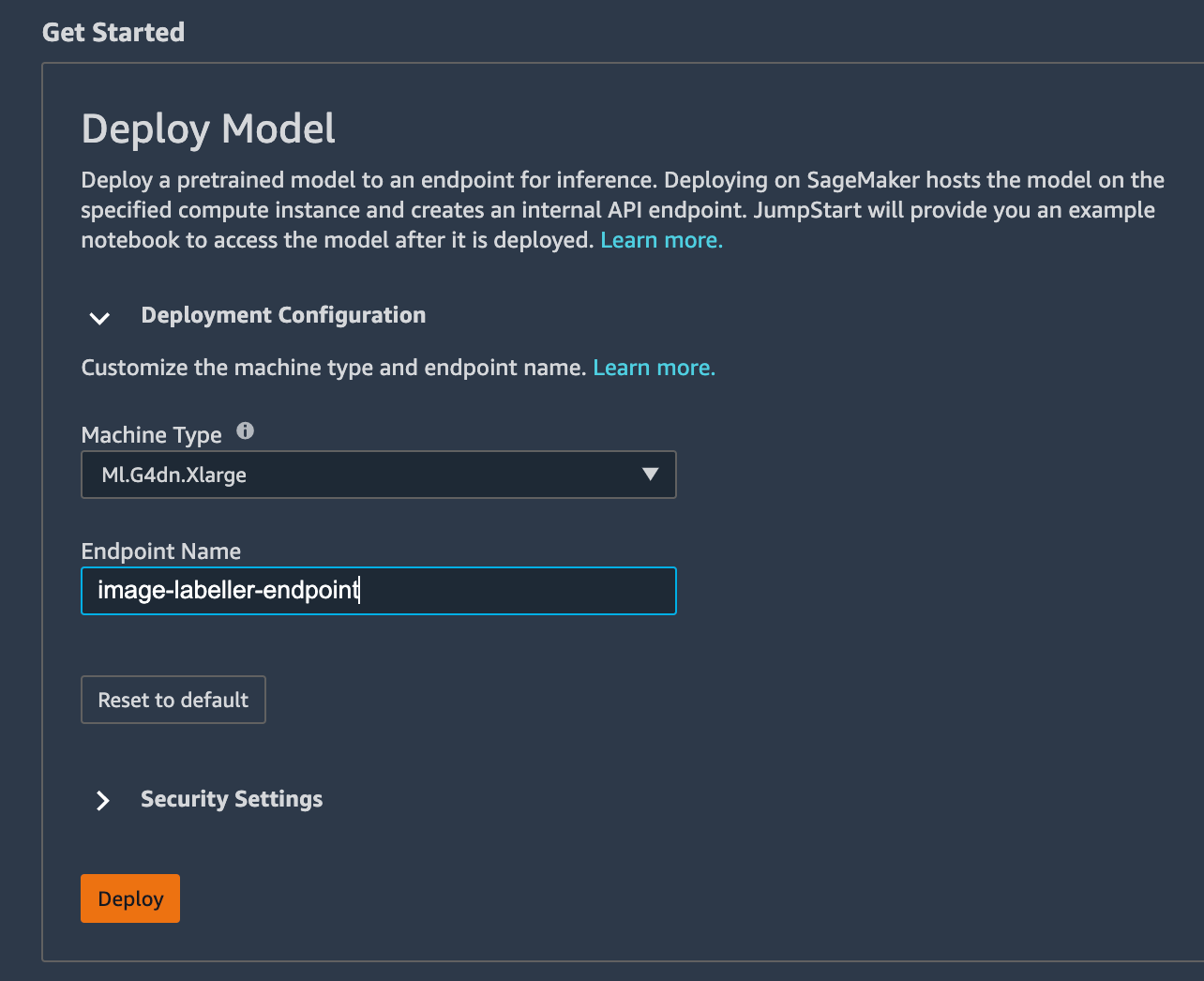

Change the Machine Type to ml.m5.large, change the Endpoint Name to something more readable like “image-labeller-endpoint”, and click Deploy.

Screenshot of deploy model

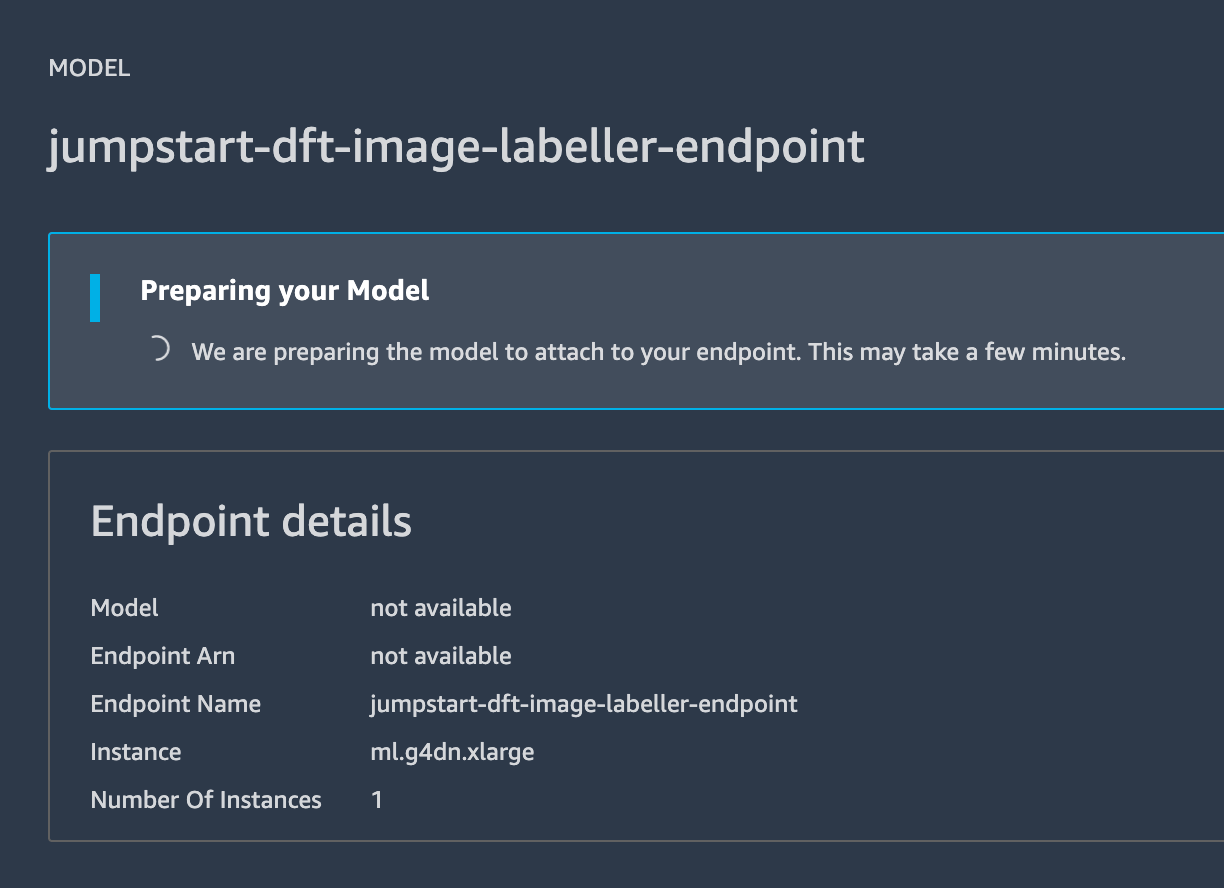

AWS SageMaker will start to deploy the model.

Screenshot of deployment starting

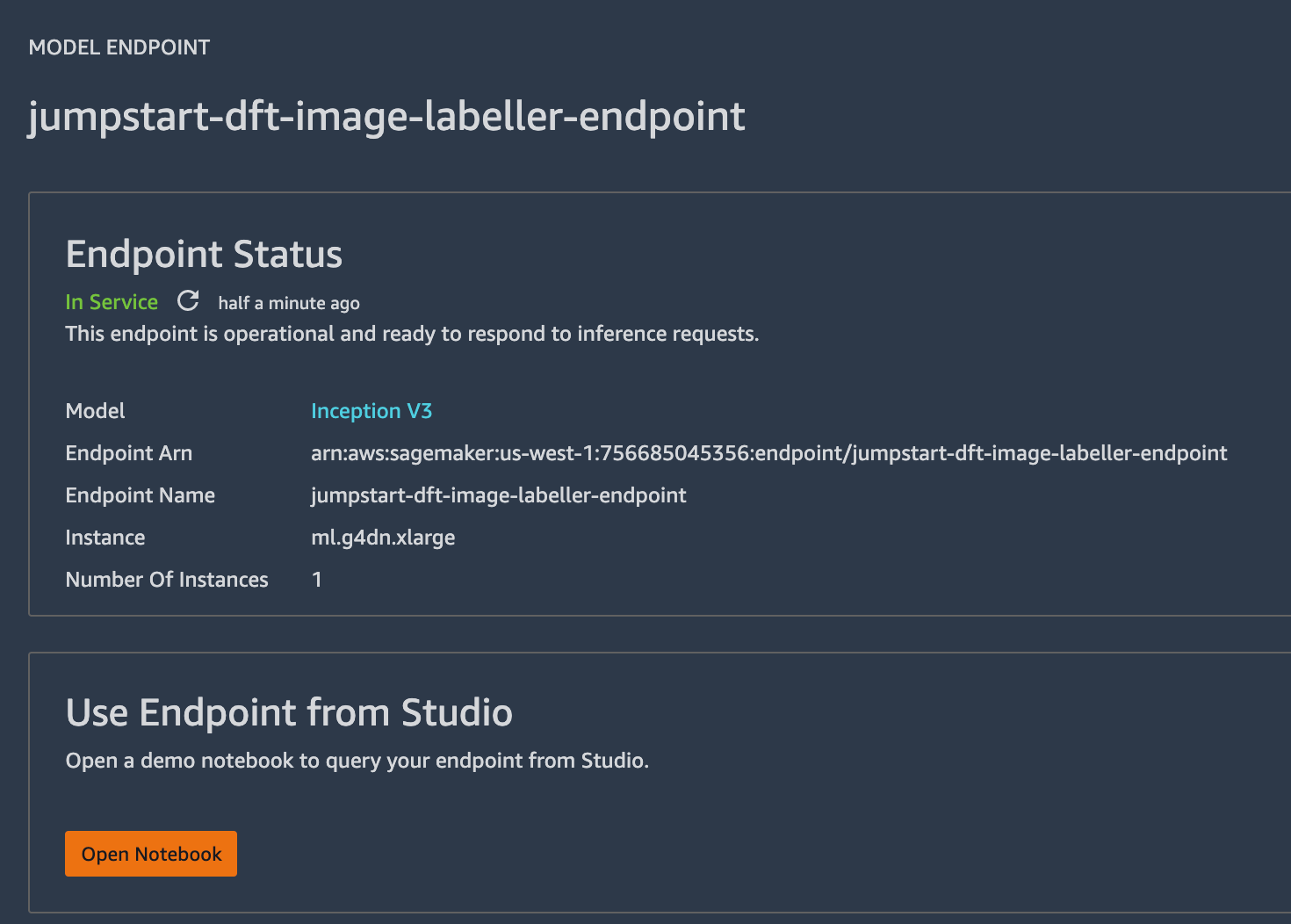

Click Open Notebook when the deployment is finished.

Screenshot of endpoint status

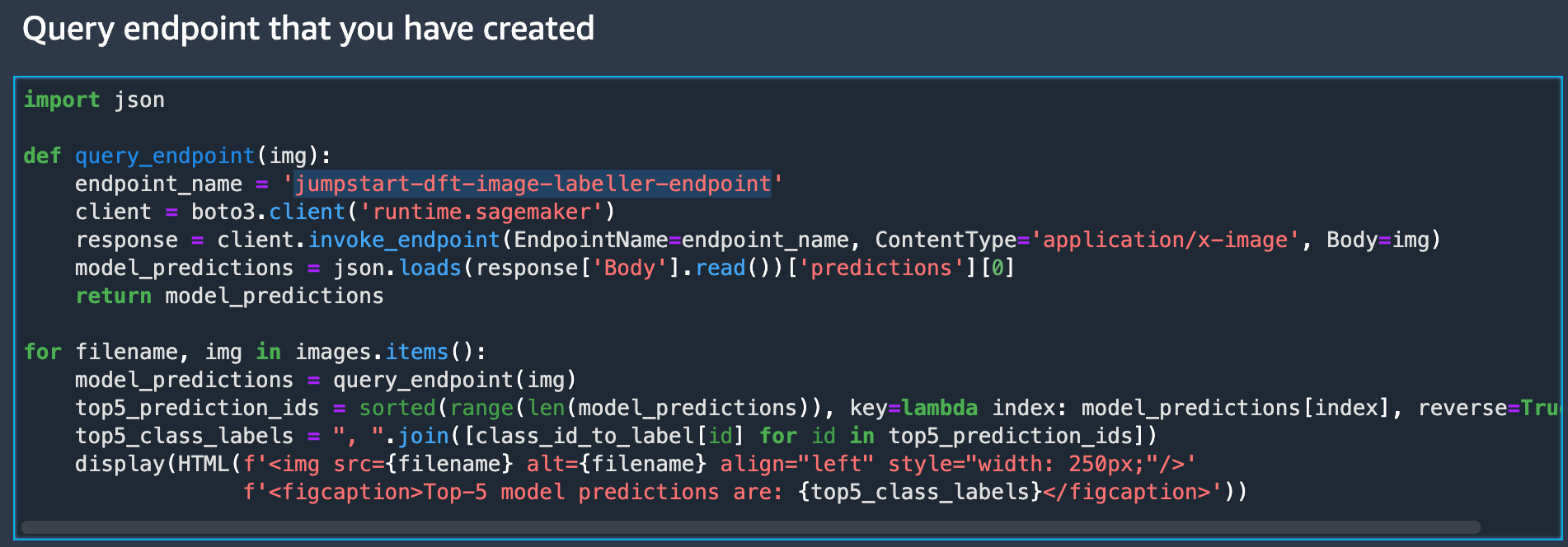

Run all three of the notebook code blocks in order to verify things are working. Make a note of the endpoint_name in query_endpoint. You need to add this, and the region your AWS SageMaker notebook is in to the InvokeLabeller AWS Lambda.

For information on how to use Jupyter notebooks please read the documentation.

Screenshot query endpoint

Open InvokeLabeller’s src/ file and look for query_endpoint. change the endpoint_name, and client region_name to match your AWS SageMaker notebook.

def query_endpoint(img):
  endpoint_name = 'jumpstart-dft-image-labeller-endpoint'
  client = boto3.client(service_name='runtime.sagemaker', region_name='us-west-1')
  response = client.invoke_endpoint(EndpointName=endpoint_name, ContentType='application/x-image', Body=img)
  model_predictions = json.loads(response['Body'].read())['predictions'][0]
  return model_predictions

With SageMaker configuration complete, the next step is to deploy ImageLabeller with either Bitbucket, GitHub, or GitLab.
